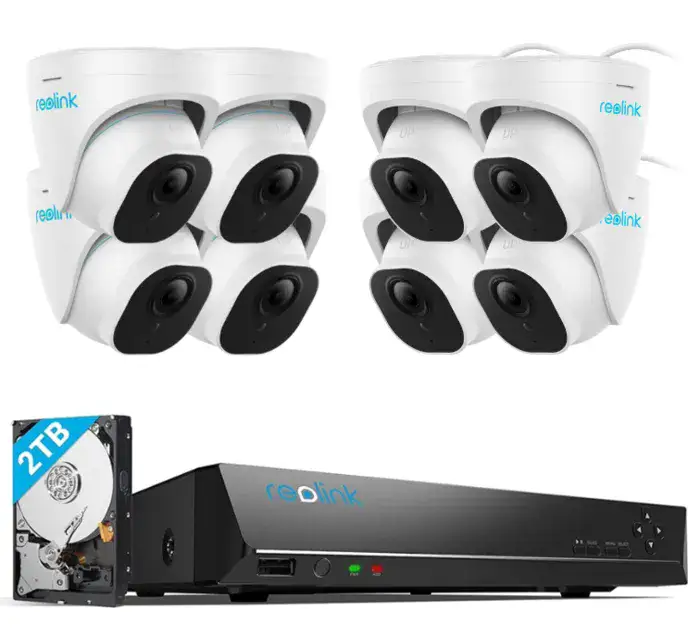

| N7MB01 |
Hardware |
| 8x PoE IP camera |
IP Video Input |
| Cameras with built-in mic |
Audio Input |
| VGA, HDMI |
Video Output |
|
HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
|
Display Resolution |
|
1channel, RCA
|
Audio output |
|
H.264, H.265
|
Video Format |
| 7680x2160, 4608x1728, 4512x2512, 4096x3072, 3840x2160, 2560x2560, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p |
Live View / Playback Resolution |
| Up to 4 channels |
Synchronous Playback |
SATA: 1x SATA interface (1x 2TB HDD included)
External HDD: 1 eSATA interface for HDD
Capacity: Up to 12TB (Max. 6TB capacity for each HDD
|
HDD |
2x USB2.0
|
USB Interface |
1x RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN
8x RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
Network Interface |
Max. Power Per Port: 25W
Supported Standard: IEEE 802.3af/at |
PoE |
| HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
Network Protocols |
| Edge, Firefox, Chrome, Safari |
Browsers Supported |
| PC: Windows, Mac OS; Smartphone: iOS, Android |
OS Supported |
| Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams); 20 users (1 admin account & 19 user accounts) |
Maximal User Access |
| DC 48V~53V |
Power Supply |
| 10W (without HDD & PoE)> |
Power Consumption |
Temperature: -10°C~45°C
Humidity: 10%~90% |
Working Environment |
| 260x41x230 mm |
Dimensions |
| 1.4kg |
Weight |
| CMOS 1/2.7" Sensor |
Image Sensor |
| 2560x1920 (5 Megapixels) at 30 FPS |
Video Resolution |
| f=4.0mm fixed, F=2.0, with IR-cut filter |
Lens |
| H.264 |
Video Format |
|
Horizontal: 80°
Vertical: 58°
|
Field of View |
|
Auto-switching with IR-cut filter
|
Day & Night |
|
30meters (LED 18pcs / 14mil / 850nm)
|
Night Vision |
| Audio recording |
Audio |
| IEEE 802.3af, 48V Active |
PoE |
Mainstream: 2fps - 30fps (default: 30)
Substream: 4fps - 15fps (default: 7)
|
Frame Rate |
Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)
Substream: 64Kbps - 512Kbps (default: 160Kbps) |
Code Rate |
| Edge, Chrome, Firefox, Safari |
Software Browsers Supported |
| PC: Windows, Mac OS; Smartphone: iOS, Android |
Software OS Supported |
| Motion detection |
Smart Alarm |
| Motion-triggered recording / scheduled Recording |
Recording Modes |
| HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
Protocols & Standards |
| Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams); 20 users (1 admin account & 19 user accounts) |
Maximal User Access |
| DC 12.0V 1A, <8W |
DC Power |
Power: DC power port
System: Reset button
Ethernet: One 10M/100Mbps RJ45
Storage: MicroSD card slot (Max. 128GB)
Audio: Built-in microphone |
Interface |
| 10°C to 55°C- |
Operating Temperature |
| 90%~10% |
Operating Humidity |
| IP66 |
Weather Resistance |
| Φ105x93 mm |
Dimension |
| 385g |
Weight |
