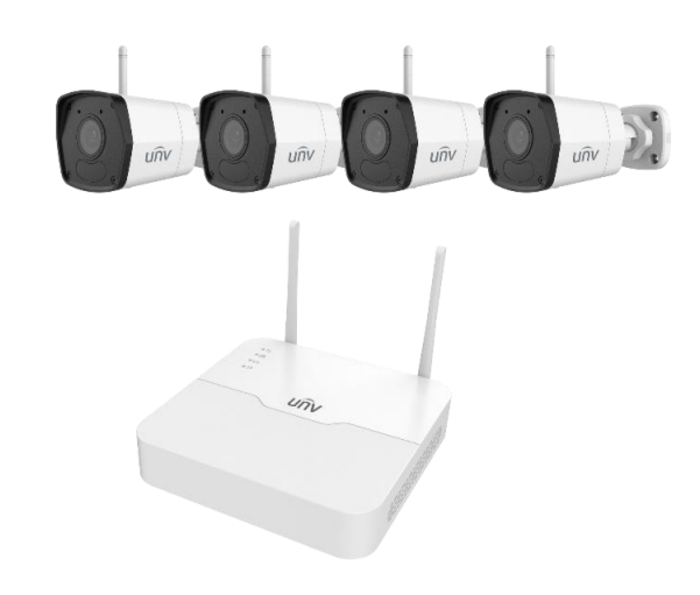

NVR301-04LS2-W
|
Model |
|
4ch
|
IP Video Input |
Incoming: 40Mbps
Outgoing: 40Mbps |
Bandwidth |
|
128
|
Remote Users |
|
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS
|
Protocols |
HDMI: 1920x1080p / 60Hz, 1920x1080p / 50Hz, 1600x1200 / 60Hz, 1280x1024 / 60Hz, 1280x720 / 60Hz, 1024x768 / 60Hz
VGA: 1920x1080p / 60Hz, 1920x1080p / 50Hz, 1600x1200 / 60Hz, 1280x1024 / 60Hz, 1280x720 / 60Hz, 1024x768 / 60Hz |
HDMI / VGA Output |
| 1080p / 960p / 720p / D1 / 2CIF / CIF |
Recording Resolution |
| 1ch, RCA |
Audio Output |
| G.711A, G.711U |
Audio Compression |
| 4ch |
Synchronous Playback |
| 1/4 |
Live View Display |
| 3/4 |
Corridor Mode Screen |
| 1ch snapshot, up to D1 resolution |
Event Snapshot |
| Ultra 265 / H.265 / H.264 |
Decoding Format |
| 1080p / 960p / 720p / D1 / 2CIF / CIF |
Liveview / Playback |
| 4x 1080p @30 |
Decoding Capability |
| 1SATA interface |
Hard Disk SATA |
| up to 6TB for each HDD |
Hard Disk Capacity |
| Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
General Alarm |
| IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal |
Alert Alarm |
1RJ45 10M/100M self-adaptive Ethernet Interface
|
Network interface |
| Rear panel: 2x USB2.0 |
USB interface |
Frequency: 2.4GHz
Transmission Rate: 150Mbps
Wireless Standards: IEEE 802.11b/g/n |
Wi-Fi |
12V DC
Power Consumption: ≤9W (without HDD) |
Power Supply |
55°~ 10°-
Humidity ≤ 90% RH (non-condensing) |
Working Environment |
| 205x205x47 mm |
Dimensions (WxDxH) |
| 0.58kg≥ |
Weight (without HDD) |
| UL, CE, FCC, RoHS, WEEE |
Certification |
|
IPC2122LB-AF40WK-G
|
Model |
|
2MP, 1/2.9" CMOS, progressive scan
|
Sensor |
| 2.8mm and 4.0mm @F2.0, Fixed-focal |
Lens |
| M12 |
Lens Mount |
Detect(m): 64.3
Observe(m): 25.7
Recognize(m): 12.9
Identify(m): 6.4 |
DORI Distance (4.0mm Lens) |
|
°H:83.7
°V:44.6
O:89.1°
|
Angle of View |
|
Pan:0°~360°
Tilt:0°~90°
Rotate:0°~360°
|
Adjustment angle |
| Auto/Manual, 1~1/100000 s |
Shutter |
Colour: 0.01 Lux (F2.0, AGC ON)
0Lux with IR on |
Minimum Illumination |
| IR-cut filter with auto switch (ICR) |
Day/Night |
| 52dB< |
S/N |
| Up to 30m IR range |
IR Range |
| 850nm |
Wavelength |
| Auto/Manual |
IR On/Off Control |
| DWDR |
WDR |
Ultra 265, H.265, H.264, MJPEG
|
Video Compression
|
| Baseline profile, Main profile, High profile |
H.264 code profile |
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720): Max. 30
fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps
|
Frame Rate
|
| 128Kbps~6 Mbps |
Video Bit Rate |
| Supported |
U-code |
| Up to 4 OSDs |
OSD |
| Up to 4 areas |
Privacy Mask |
| Up to 8 areas |
ROI |
| Up to 4 areas |
Motion Detection |
White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction 2D/3D DNR
Smart IR: Supported
Flip: Normal / Vertical / Horizontal / 180°
Dewarping: NA
HLC: Supported
BLC: Supported
Defog: Digital Defog |
Image |
| Human body detection, Motion detection, tampering alarm, audio detection |
Basic Detection |
| Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
General Function |
Compression: G.711
Suppression: Supported
Sampling Rate: 8KHz |
Audio |
Edge Storage: Micro SD, up to 128GB
Network Storage: ANR, NAS(NFS) |
Storage |
|
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
Client: EZStation, EZView, EZLive
|
Network |
| Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
Security |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0, Firefox 58.0, Edge 16 and above |
Web Browser |
| IEEE 802.11b/g/n |
Wireless Standards |
| 2.4GHz ~ 2.4835GHz |
Wi-Fi Frequency Range |
| 20MHz Support |
Channel Bandwidth |
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM / HT |
Modulation Mode |
| 64/128bit WEP, WPA-PSK / WPA2-PSK |
Wi-Fi Security |
802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @54Mbps
802.11n: 12.5±1.5dBm @150Mbps |
Transmit Power |
802.11b: -90dBm @11Mbps (Typical)
802.11g: -75dBm @54Mbps (Typcial)
802.11n: -74dBm @150Mbps (Typical) |
Receive Snesitivity |
802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps |
Transmission Rate |
Network: 1* RJ45 10M/100M Base-TX Ethernet
Build-in Mic: Supported |
Interface |
Safety: CE: EN 60950-1, UL: UL60950-1, IEC 60950-1
EMC: FCC: FCC Part 15 |
Certifications |
12V DC±25%
Power Consumption: Max 4.0W |
Power |
| Ø 5.5mm coaxial power plug |
Power Interface |
| 172x76x72 mm |
Dimensions (LxWxH) |
| 0.25kg |
Weight |
| Metal + Plastic |
Material |
60°~30°-
95%≥ :Humidity
|
Working / Storage Environment |
| 4KV |
Surge Protection |
| IP67 |
Ingress Protection |
| Supported |
Reset Button |
