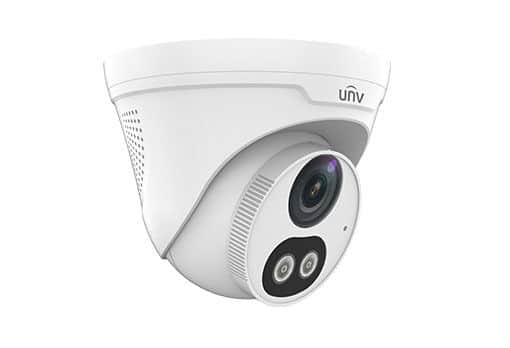

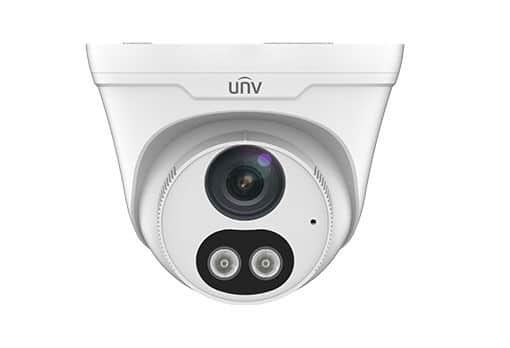

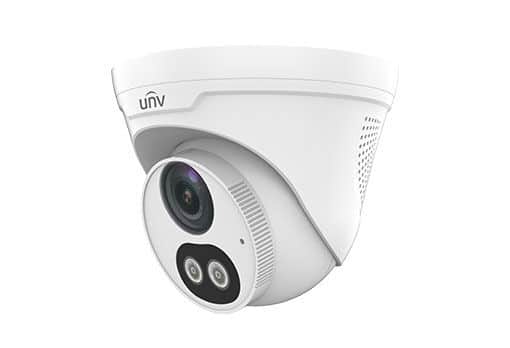

4MP 1/3" CMOS, progressive scan
|
Sensor |
|
Colour: 0.003 Lux (F1.6, AGC ON)
0Lux with light
|
Minimum Illumination |
|
IR-cut filter with auto switch (ICR)
|
Day / Night |
|
Auto / Manual, 1~1/100000 s
|
Shutter |
|
Pan:0°~360°
Tilt:0°~80°
Rotate:0°~360°
|
Adjustment angle
|
|
52dB<
|
S/N |
|
120dB
|
WDR |
| 2.8mm@ F1.6, Fixed-focal |
Lens Type |
| M12 |
Lens Mount |
Detect(m): 63
Observe(m): 25.2
Recognize(m): 12.6
Identify(m): 6.3 |
DORI Distance |
|
H: 112.9°
V: 59.1°
D: 121.2°
|
Field of View |
|
Up to 30m
|
IR Range |
|
Up to 30m
|
White Light Range |
| IR: 850nm |
Wavelength |
| Auto / Manual |
IR On/Off Control |
Ultra 265, H.265, H.264, MJPEG
|
Video Compression
|
| Baseline profile, Main profile, High profile |
H.264 code profile |
Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720): Max. 30
fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps |
Frame Rate
|
| 128Kbps ~ 16Mbps |
Video Bit Rate |
| Supported |
U-code |
| Supported |
9:16Corridor Mode |
| Up to 4 OSDs |
OSD |
| Up to 4 areas |
Privacy Mask |
| Up to 8 areas |
ROI |
| Up to 4 areas |
Motion Detection |
White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise
Dewarping: N/A
HLC: Supported
BLC: Supported
Defog: Digital Defog |
Image |
Cross line, intrusion (based on human body detection)
Motion detection, tampering alarm, audio detction |
Basic Detection |
| Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication |
General Function |
Audio Compression: G.711
Suppression: Supported
Sampling Rate: 8KHz |
Audio |
Edge Storage: Micro SD, up to 128GB
Network Storage: ANR, NAS(NFS) |
Storage |
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL / TLS, 802.1x, SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User / Host: Up to 32 users, 2 user levels: administrator and common user
Client: EZStation, EZView, EZLive
|
Network |
| Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
Network Security |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16 and above |
Web Browser |
Network: 1x RJ45 10M / 100M Base-TX Ethernet
Built-in Mic: Supported
Built-in Speaker: Supported
|
Interface |
|
:EMC
CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
:Safety
CE LVD (EN 62368-1: 2014+A11:2017)
CB (IEC 62368-1: 2014)
UL (UL 62368-1, 2nd Ed, Issue Date: 2014-12-01)
Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529: 1989+ AMD1: 1999+ AMD2: 2013)
|
Certifications |
|
12V DC±25%, PoE (IEEE802.3 af)
Power Consumption: Max 8W
Power Interface: Ø 5.5mm coaxial power plug
|
Power |
| Φ118x96 mm |
Dimensions (ØxH) |
| 0.3kg |
Weight |
| Metal + Plastic |
Material |
60°~30°-
95%≥ :Humidity
RH (non-condensing) |
Working Environment |
60°~30°-
95%≥ :Humidity
RH (non-condensing)
|
Storage Environment |
| 4KV |
Surge Protection |
| N/A |
Reset Button |
