| "1/2.8 CMOS |
Image Sensor |
|
3840x2160
|
Effective Pixels |
|
1/3s ~ 1/100000s
|
Electronic Shutter |
|
8MP @1-20FPS, 6MP @1-20FPS, 5MP @1-25/30, 4MP @1-25/30, 2MP 1-25/30 in normal mode, 1-50/60FPS in HFR Mode (1080p, no true-WDR)
|
Frame Rate |
| ICR |
Day & Night |
| 0.015lux (@F1.4, AGC On) 0 lux with IR on |
Min. Illumination |
| G.711A / G.711U |
Audio compression |
| Two-way Audio |
Communication |
AWB, AGC Adjustable, Exposure Mode (Auto)
Sharpness, Saturation, Brightness & Contrast Adjustable |
Image Settings |
True WDR (15fps max) (120dB) / BLC / HLC / ROI
|
Image Enhancement |
| 3D-DNR |
Noise Reduction |
| Mirror / Flip |
Image Orientation |
| Yes |
Privacy Zone |
| Yes |
Motion Detection |
General Analytics: Camera Tampering
AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting
AI (Face Detection): 10 Faces per frame |
Analytics |
| H.265S / H.264S (Main Stream Only), H.265+ / H.264+ / H.265 / H.264 / MJPEG (Sub-Streams Only) |
Video Compression |
| 8MP / 4K / 6MP / 5MP / 4MP / 2MP / 1MP / D1 / QVGA / CIF |
Resolution |
Master Stream: 4K (3840x2160) / 6M (3072x2048) / 5MP (2592x1944) / 2K (2560x1440) / 2MP (1920x1080)
Sub-stream: 2MP / 1MP / D1 / CIF / QCIF
Third Stream: 1MP / D1 / CIF / QCIF (1~30fps) |
Multi-Stream |
| 64Kbps ~ 8Mbps @H.265 / 64Kbps ~12Mbps @H.264 |
Bit rate |
| VBR / CBR |
Encode Mode |
| Five levels under VBR; Free adjustment under CBR |
Image Quality |
60m (4 High Power IR LED)
|
IR Distance |
| 2.8-12mm MVF with Auto Focus (96°-32°) |
Lens (Field of View) |
| DC Iris (@F1.4) |
Iris |
| Ø14 Mount |
Lens Mount |
| Water Proof: IP67 |
Protection Rate |
| 3Axis Bracket |
Bracket |
| 271.8x 92.4x 79.4mm |
Dimensions |
| 1040g~ |
Weight (gross) |
| RJ45 (+PoE) |
Network |
| DC Socket |
Power |

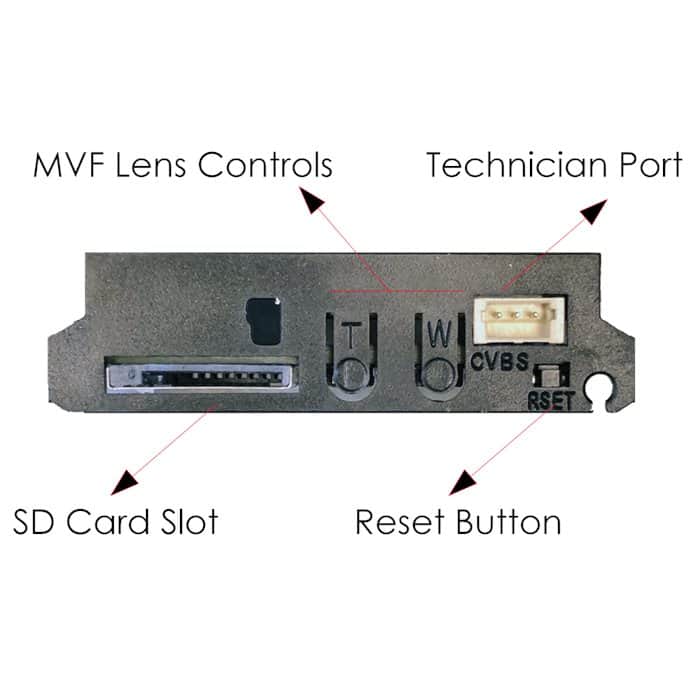

| CVBS Out + Technician Port |
Analog Video Output |
| Audio Input + Audio Output |
Audio Connectivity |
| Event / Schedule based Main / Substream recording (Up to 128Gb) |
SD Card |
| Yes |
Hard Reset Button |
| Alarm in + Alarm Out |
Alarm |
| IE Browsing, CMS Software, Provision Cam2 Mobile App |
Remote Monitoring |
| Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
User Access |
| IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P |
Network Protocol |
| Yes |
ONVIF |
| 100Mbps |
Ethernet |
| Yes |
PoE |
| DC12V / ~790mA / PoE / ~11.04W |
Power Supply |
| 30°C~60°C, 10%~90% Humidity- |
Work Environment |
| PR-JB14IP66 - PR-JB14IP64 |
Junction Box |
