| "1/3 CMOS |
Image Sensor |
|
2592x1520
|
Effective Pixels |
|
1/25s ~ 1/100000s
|
Electronic Shutter |
|
1-25/30FPS In Normal Mode, 1-50/60FPS in HFR Mode (1080p, no true-WDR)
|
Frame Rate |
| ICR |
Day & Night |
| Day: 0.1lux / Night: 0.005lux (@F1.6, AGC On) 0lux with IR on |
Min. Illumination |
| G.711A / G.711U |
Audio compression |
| One-way Audio |
Communication |
AWB, AGC Adjustable, Exposure Mode (Auto)
Sharpness, Saturation, Brightness & Contrast Adjustable |
Image Settings |
True WDR (120dB) / BLC / HLC / ROI
|
Image Enhancement |
| 3D-DNR |
Noise Reduction |
| Mirror / Flip |
Image Orientation |
| Yes |
Privacy Zone |
| Yes |
Motion Detection |
General Analytics: Camera Tampering
AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting
AI (Face Detection): 10 Faces per frame |
Analytics |
| H.265S / H.264S (Main Stream Only), H.265+ / H.264+ / H.265 / H.264 / MJPEG (Sub-Streams Only) |
Video Compression |
| 4MP / 2K / 3MP / 2MP / 1MP / D1 / QVGA / CIF / QCIF |
Resolution |
Master Stream: 4MP (2592x1520) / 2K (2560x1440) / 3MP / 2MP / 1MP
Substream: 1MP / D1 / CIF / QCIF
Third Stream: D1 / CIF / QCIF (1~30fps) |
Multi-Stream |
| 64Kbps ~ 7Mbps @H.265 / 64Kbps ~8Mbps @H.264 |
Bit rate |
| VBR / CBR |
Encode Mode |
| Five levels under VBR; Free adjustment under CBR |
Image Quality |
40m (2 High Power IR LED)
|
IR Distance |
| 3.6mm (80.6°) |
Lens (Field of View) |
| Fixed Iris |
Iris |
| M12 mount |
Lens Mount |
| Water Proof: IP67 |
Protection Rate |
| 3Axis Bracket |
Bracket |
| 220.8x 79.4x 81.2mm |
Dimensions |
| 650g~ |
Weight (gross) |
| RJ45 (+PoE) |
Network |
| DC Socket |
Power |
| No |
Analog Video Output |
| Audio Input |
Audio Connectivity |
| Event / Schedule based Main / Substream recording (Up to 128Gb) |

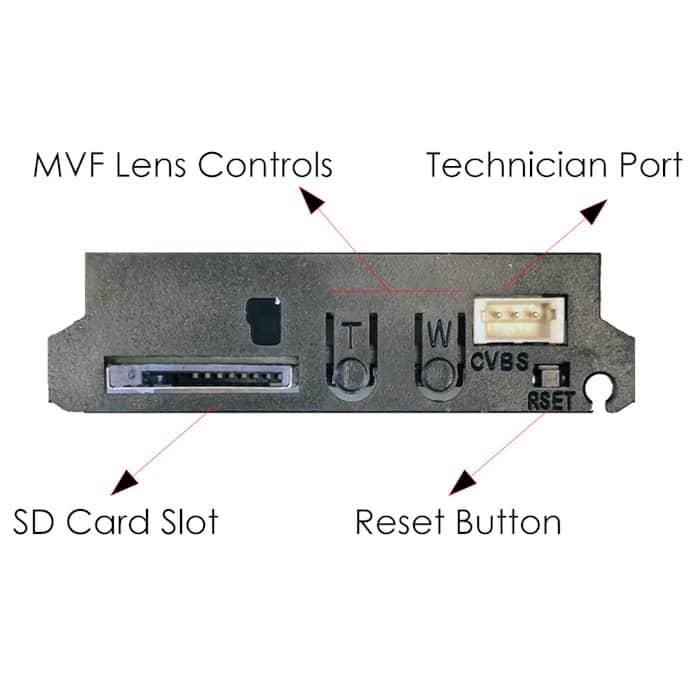

SD Card |
| Yes |
Hard Reset Button |
| No |
Alarm |
| IE Browsing, CMS Software, Provision Cam2 Mobile App |
Remote Monitoring |
| Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
User Access |
| IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P |
Network Protocol |
| Yes |
ONVIF |
| 100Mbps |
Ethernet |
| Yes |
PoE |
| DC12V / ~780mA / PoE / ~7.4W |
Power Supply |
| 30°C~60°C, 10%~90% Humidity- |
Work Environment |
| PR-JB12IP66 - PR-JB12IP64 |
Junction Box |
