| "1/3 CMOS |
Image Sensor |
|
2592x1520
|
Effective Pixels |
|
1/25s ~ 1/10000s
|
Electronic Shutter |
|
1-25/30FPS In Normal Mode, 1-50/60FPS In HFR Mode (1080p, No true-WDR)
|
Frame Rate |
| ICR |
Day & Night |
| Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on |
Min. Illumination |
| G.711A / G.711U |
Audio compression |
| Two-way Audio |
Communication |
AWB, AGC Adjustable, Exposure Mode (Auto)
Sharpness, Saturation, Brightness & Contrast Adjustable |
Image Settings |
True WDR (120dB) / BLC / HLC / ROI
|
Image Enhancement |
| 3D-DNR |
Noise Reduction |
| Mirror / Flip |
Image Orientation |
| Yes |
Privacy Zone |
| Yes |
Motion Detection |
| Object Recognition (Sterile Area, Line Crossing), Camera Tampering |
Analytics |
| H.265+ / H.264+ / H.265 / H.264 / MJPEG |
Video Compression |
| 4MP / 2K / 3MP / 2MP / 1MP / D1 / QVGA / CIF |
Resolution |
Master Stream: 4MP (2592x1520) / 2K (2560x1440) / 3MP / 2MP / 1MP
Substream: 1MP / QVGA / D1 / CIF
Third Stream: QVGA / D1 / CIF (1~30fps) |
Multi-Stream |
| 64Kbps ~ 7Mbps @H.265 / 64Kbps ~8Mbps @H.264 |
Bit rate |
| VBR / CBR |
Encode Mode |
| Fire levels under VBR; Free adjustment under CBR |
Image Quality |
40m (2 High-Power IR LED)
Red / Blue Strobe light |
IR Distance |
| 2.8-12mm MVF with Auto Focus (94.2° -29.8°) |
Lens (Field of View) |
| DC Iris |
Iris |
| Ø14 Mount |
Lens Mount |
| Water Proof: IP66 |
Protection Rate |
| 3Axis Bracket |
Bracket |
| Ø113x99.6 mm |

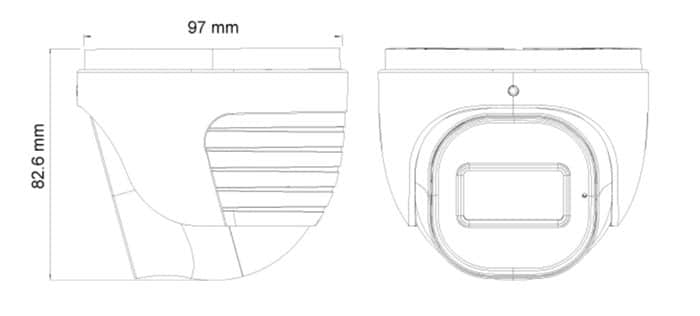

Dimensions |
| 640g~ |
Weight (gross) |
| RJ45 (+PoE) |
Network |
| DC Socket |
Power |
| No |
Analog Video Output |
| Built-in Microphone and speaker + Audio Input |
Audio Connectivity |
| Event / Schedule based Main / Substream recording (Up to 256Gb) |
SD Card |
| Yes |
Hard Reset Button |
| Alarm in + Alarm out |
Alarm |
| IE Browsing, Ossia VMS Software, Provision Cam2 Mobile App |
Remote Monitoring |
| Supports simultaneous monitoring of up to 10 users with multi-stream real-time |
User Access |
| IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P |
Network Protocol |
| Yes |
ONVIF |
| 100Mbps |
Ethernet |
| Yes |
PoE |
| DC12V / ~900mA / PoE / ~10W |
Power Supply |
| 30°C~60°C, 10%~90% Humidity- |
Work Environment |
| PR-JB14IP66 - PR-JB14IP64 - PR-WB-A |
Junction Box |
