Quantum IoT Nano agent by Check Point
|
General
|
|
Shell Injection Protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection
|
Protection Methods
|
|
"1/3 CMOS (16:9)
|
Image Sensor
|
|
2560x1440
|
Effective Pixels
|
|
1s ~ 1/100000s
|
Electronic Shutter
|
|
ICR + 24/7 Full-Color Day Mode
|
Day & Night
|
|
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on), 0 lux with IR on
|
Min. Illumination
|
|
G.711A / G.711U
|
Audio compression
|
|
One-way Audio
|
Communication
|
|
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
|
Image Settings
|
|
True WDR (120dB), BLC, HLC, ROI
|
Image Enhancement
|
|
3D-DNR
|
Noise Reduction
|
|
Mirror / Flip, Corridor Mode
|
Image Orientation
|
|
Yes
|
Privacy Zone
|
|
General Analytics: Item Monitoring, Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing
|
Analytics
|
|
Yes
|
Motion Detection
|
|
4MP (2560x1440) / 3MP (2304x1296) / 2MP (1920x1080) / 1MP (1280x720) / D1 / QVGA / CIF
|
Resolution
|
|
1-25/30FPS
|
Frame Rate
|
|
**H.265+ / H.264+ / H.265 / H.264 / MJPEG
|
Video Compression
|
|
Master Stream: 4MP (2560x1440) / 3MP / 2MP Substream: 1MP / QVGA / D1 / CIF Third Stream: QVGA / D1 / CIF (1~30fps)
|
Multi-Stream
|
|
64Kbps ~ 5Mbps @H.265
128Kbps ~ 6Mbps @H.264
|
Bit Rate
|
|
VBR / CBR
|
Encode Mode
|
|
Five levels under VBR; Free adjustment under CBR
|
Image Quality
|
|
2.8mm (93°)
|
Lens (Field of View)
|
|
Fixed Iris
|
Iris
|
|
M12 Mount
|
Lens Mount
|
|
62m
|
Detect
|
|
12m
|
Recognize
|
|
6m
|
Identify
|
|
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
|
User Access
|
|
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, UPnP, Email, FTP, HTTP POST, HTTPS, QoS, Auto Report, P2P
|
Network Protocol
|
|
IE Browsing, VMS Software, Provision Cam2 Mobile App
|
Remote Monitoring
|
|
100Mbps
|
Ethernet
|
|
Profile M/T/S/G
|
ONVIF
|
|
Network: RJ45 (+PoE)
Audio: Built-in Microphone + Audio input
Alarm: No
SD Card: Event / Schedule based Main / Substream recording (Up to 256GB)
Wiegand: No
Power: DC Socket
Analog Video Output: No
|
Connectivity
|
|
Yes
|
PoE
|
|
20m (1 High-Power IR LED, 1 High-Power White Led)
|
Illumination
|
|
DC12V / ~400mA / PoE / ~6W
|
Power Supply
|
|
Water Proof: IP67
|
Protection Rate
|
|
30°C~60°C, 10%-90% Humidity-
|
Work Environment
|
|
3Axis Bracket
|
Bracket
|
|

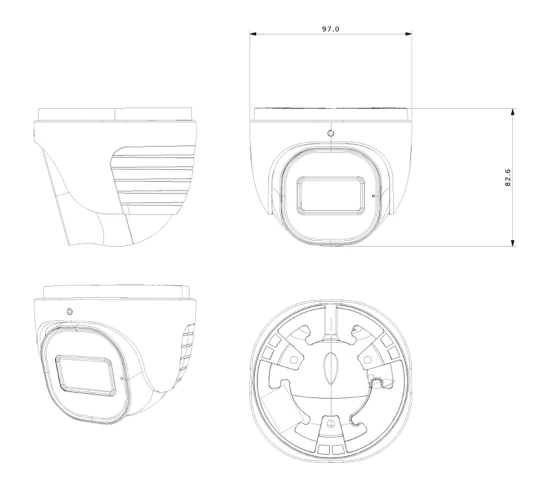

Ø97x82.6 mm
|
Dimensions
|
|
540g~
|
Weight (gross)
|
|
Yes
|
Hard Reset Button
|
|
Yes
|
NDAA Compliant
|
