| "1/2.8 CMOS |
Image Sensor |
|
1920x1080
|
Effective Pixels |
|
1/25s ~ 1/10000s
|
Electronic Shutter |
|
1-25/30FPS In Normal Mode, 1-50/60FPS In HFR Mode (No true-WDR)
|
Frame Rate |
| ICR |
Day & Night |
| Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on |
Min. Illumination |
| G.711A / G.711U |
Audio compression |
| Two-way Audio |
Communication |
AWB, AGC Adjustable, Exposure Mode (Auto)
Sharpness, Saturation, Brightness & Contrast Adjustable |
Image Settings |
True WDR (120dB) / BLC / HLC / ROI
|
Image Enhancement |
| 3D-DNR |
Noise Reduction |
| Mirror / Flip |
Image Orientation |
| Yes |
Privacy Zone |
| Yes |
Motion Detection |
General Analytics: Camera Tampering
LPR: License plate recognition |
Analytics |
| LPR (database): 10000 Plate Database |
License plate database |
| LPR (detection speed): 0-70 Km/h |
Speed |
| Recognition rate up to 99% under good conditions |
Accuracy |
| Automation: Can work as a standalone for gate automation |
Automation |
| 1.97m - 26.87m |
Recognition distance |
| 2plates per second |
Recognition per second |
| Snapshot / Email / FTP for allow / block lists |
Triggers |
| H.265S / H.264S (Main Stream only), H.265+ / H.264+ / H.265 / H.264 / MJPEG (Substream only) |
Video Compression |
| 2MP / 1MP / D1 (704x576) / QVGA (480x240) / CIF (352x288) |
Resolution |
Master Stream: 2MP (1920x1080) / 1MP (1280x720) (1~30fps)
Substream: 1MP / QVGA / D1 / CIF
Third Stream: QVGA / D1 / CIF (1~30fps) |
Multi-Stream |
| 64Kbps ~ 8Mbps @H.265 / 64Kbps ~12Mbps @H.264 |
Bit rate |
| VBR / CBR |
Encode Mode |
| Five levels under VBR; Free adjustment under CBR |
Image Quality |
| 60m (4 High-Power IR LED) |
IR Distance |
| 7-22mm MVF (44° - 17.6°) |
Lens (Field of View) |
| DC Iris |
Iris |
| Ø14 Mount |
Lens Mount |
| Water Proof: IP67 |
Protection Rate |
| 3Axis Bracket |
Bracket |
| 271.8x 92.4x 79.4 mm |
Dimensions |
| 1040g~ |
Weight (gross) |
| RJ45 (+PoE) |
Network |
| DC Socket |
Power |

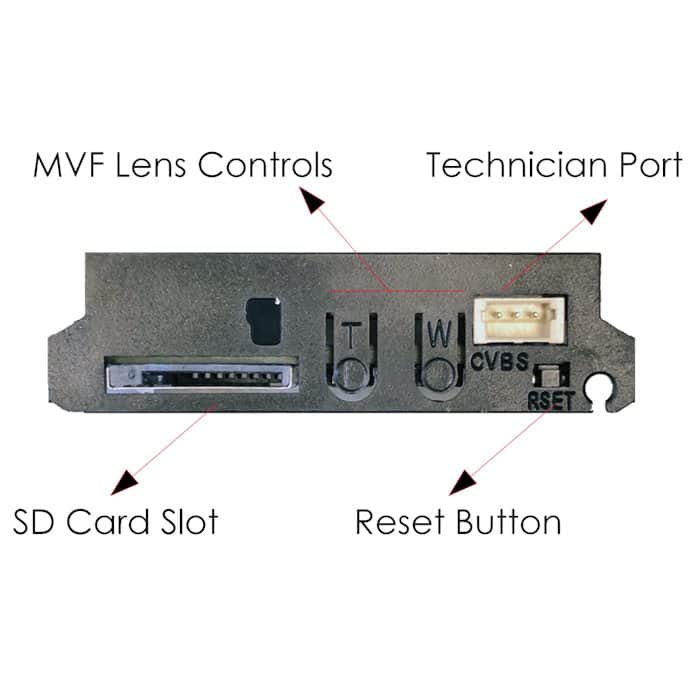

| Technician Port |
Analog Video Output |
| Audio Input + Audio Output |
Audio Connectivity |
| Event / Schedule based Main / Substream recording (Up to 128Gb) |
SD Card |
| Yes |
Hard Reset Button |
| Alarm in + Alarm out |
Alarm |
| IE Browsing, VMS Software, Provision Cam2 Mobile App |
Remote Monitoring |
| Supports simultaneous monitoring of up to 10 users with multi-stream real-time |
User Access |
| IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS |
Network Protocol |
| Yes |
ONVIF |
| 100Mbps |
Ethernet |
| Yes |
PoE |
| DC12V / ~910mA / PoE / ~11W |
Power Supply |
| 30°C~60°C, 10%~90% Humidity- |
Work Environment |
| PR-JB14IP66 - PR-JB14IP64 |
Junction Box |
